Product Summary

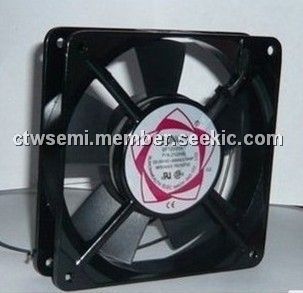

The DP200A-2123 is a fan. The applications of it are Tooling Machine Console, Industry Equipment, Refrigerator, Vending Machine, Coffee Machine, Air Purifier Machine, Telecom Equipment, Medical Equipment.

Parametrics

DP200A-2123 general specifications: (1)Air Flow: 97/117 CFM; (2)Bearing Type: Ball; (3)Brand/Series: DP Series; (4)Current, Rating: 0.14/0.12 A; (5)Dimensions: 120 H × 120 W × 38 D mm; (6)Fan Type: AC; (7)Frequency: 50/60 Hz; (8)Noise Level: 45/50 dBA; (9)Noise Rating: 45/50 dBA; (10)Power Rating: 22/21 W; (11)Power, Rating: 22/21 W; (12)Size: 120 H × 120 W × 38 D mm; (13)Speed: 2850/3150 RPM; (14)Static Pressure: 0.34/0.39 In. (H2O); (15)Termination: Terminals; (16)Type: Square; (17)Voltage, Rating: 220-240 VAC; (18)Weight: 550 g.

Features

DP200A-2123 features: (1)Frequency: 50/60 Hz; (2)Frame: Aluminum Alloy; (3)Low Power Consumption; (4)High-Temperature Endurance; (5)Longer Life Span; (6)RoHS Compliant.

Diagrams

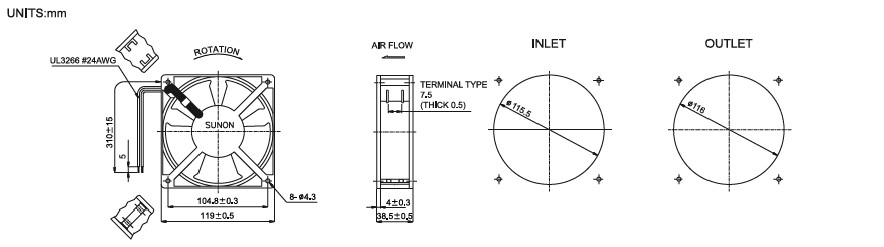

DP200A-2123 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DP200A-2123XBT.GN
DP200A-2123XBT.GN


FN 220/240VAC 120X38MM 97/117CFM

Data Sheet

0-1: $9.74
1-10: $9.30
10-50: $7.75
50-100: $6.95
100-250: $6.42
250-500: $5.98
500-1000: $5.76
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DP2001-9R
DP2001-9R


EURO-CASSETTE 120W 2X 5.1V

Data Sheet

0-5: $454.74
DP200A-2123XBT.GN
DP200A-2123XBT.GN


FN 220/240VAC 120X38MM 97/117CFM

Data Sheet

0-1: $9.74
1-10: $9.30
10-50: $7.75
50-100: $6.95
100-250: $6.42
250-500: $5.98
500-1000: $5.76
DP201A-2123HBT.GN
DP201A-2123HBT.GN


FN 220/240VAC 120X38MM 87/107CFM

Data Sheet

0-1: $9.74
1-10: $9.30
10-50: $7.75
50-100: $6.95
100-250: $6.42
250-500: $5.98
500-1000: $5.76
dp2023
dp2023

Other


Data Sheet

Negotiable
DP202A-2123MBT.GN
DP202A-2123MBT.GN


FAN 220/240VAC 120X38MM 78/84CFM

Data Sheet

0-40: $8.41
DP203A-2123LBT.GN
DP203A-2123LBT.GN


FAN 220/240VAC 120X38MM 72/78CFM

Data Sheet

0-40: $8.41
