Product Summary

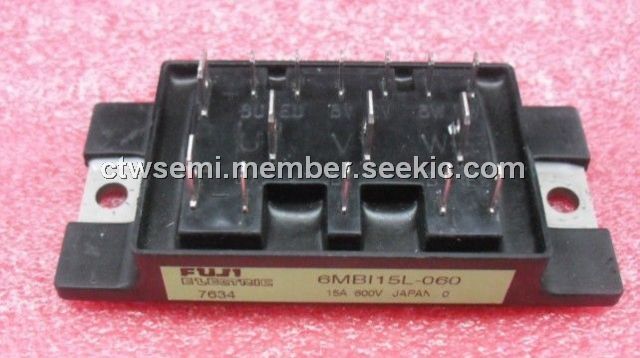

The 6MBI15L-060 is an IGBT module. The applications of the device include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines.

Parametrics

6MBI15L-060 absolute maximum ratings: (1)collector-emitter voltage, VCES: 600V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 15A; 1ms, IC pulse: 30A; contimuous, -IC: 15A; 1ms, -IC pulse: 30A; (4)max power dissipation, PC: 60W; (5)operating temperature, Tj: 150℃; (6)storagte temperature, Tstg: -40 to 125℃; (7)net weight: 150g; (8)isolation voltage, Visol: 2500V.

Features

6MBI15L-060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.

Diagrams

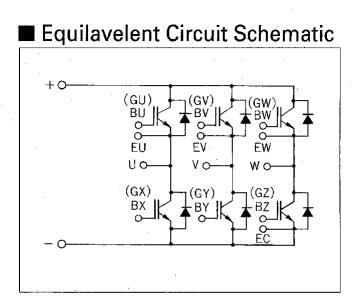

6MBI15L-060 equivalent circuit schematic
