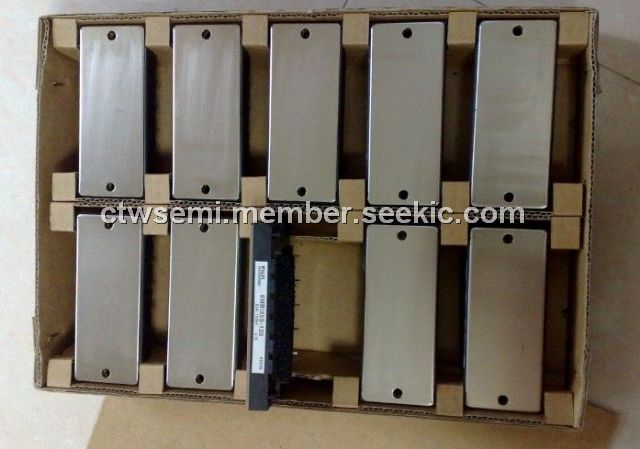

Product Summary

The 6MBI25S-120 is an IGBT module. It is suitable for Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply and Industrial machines, such as welding machines.

Parametrics

6MBI25S-120 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 35A at TC=25℃; 25A at Tc=80℃; 1ms, IC pulse: 70A at TC=25℃; 50A at TC=80℃; (4)Max. power dissipation, PC: 180W; (5)Operating temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 125℃; (7)Isolation voltage, Vis: AC2500V.

Features

6MBI25S-120 features: (1)Compact package; (2)P.C.board mount; (3)Low VCE(sat).

Diagrams

6MBI25S-120 equivalent circuit schematic
