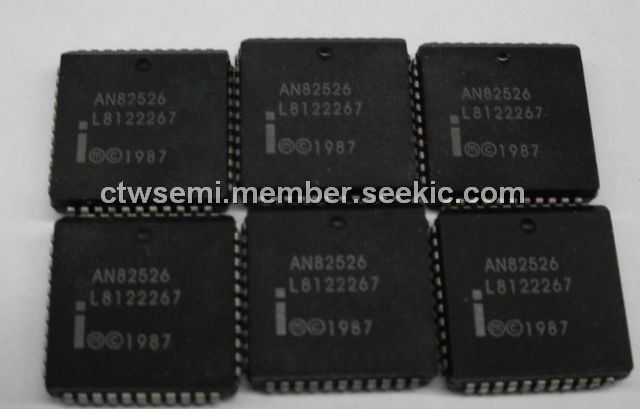

Product Summary

The AN82526 communication controller is a highly integrated VLSI device which implements the CAN protocol. Included on the chip are an interface management processor, Bit stream processor, Bus timing logic, transceiver control logic, processor interface unit. Error management logic, Clock generator and a pseudo dual port RAM. These hardware modules implement all necessary features of a high performance serial communication protocol. When connected to a microprocessor, the AN82526 performs the principal functions of the physical and data link layer.

Parametrics

AN82526 absolute maximum ratings: (1)Ambient temperature under Bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to 150℃.

Features

AN82526 features: (1)On board MoTEL; (2)Multimaster Architecture; (3)Bus Access priority by message; (4)2032 different message objects; (5)guaranteed latency time for high priority messages; (6)powerful error handling; (7)data length to 8 bytes; (8)message configuration flexibility; (9)broadcast message transfer; (10)ready output ; (11)Global interrupt disable; (12)Two 8bit I/O ports; (13)44Pin PLCC.

Diagrams

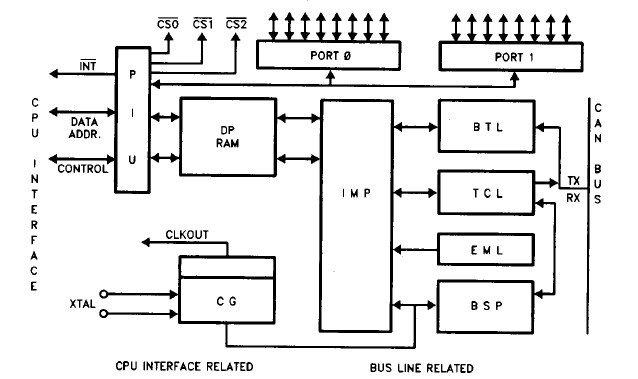

AN82526 block diagram

AN820001
AN820001
