Product Summary

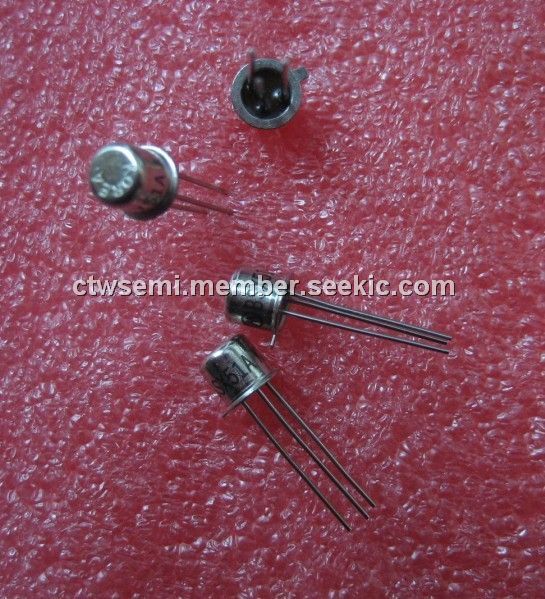

The BSX51A is a metal transistor. It is an NPN type.

Parametrics

BSX51A absolute maximum ratings: (1)VCBO: 50V; (2)VCEO: 50V; (3)VEBO: 7V; (4)IC: 0.2A; (5)Ptot: 0.3W; (6)Tj: 175℃; (7)Tstg: -65 to +175℃.

Features

BSX51A features: (1)LF amplification; (2)Low current switching.

Diagrams

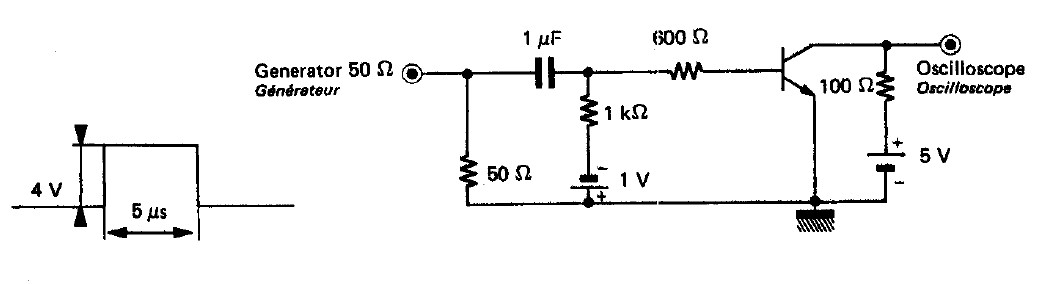

BSX51A diagram

BSX52
BSX52

Other


Data Sheet

Negotiable
