Product Summary

The HT7133 is a three-terminal low power high voltage regulator implemented in CMOS technology. It allows input voltages as high as 24V. The HT7133 available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulator, the HT7133 can be used with external components to obtain variable voltages and currents. The applications of it are Battery-powered equipment, Communication equipment, Audio/Video equipment.

Parametrics

HT7133 absolute maximum ratings: (1)Supply Voltage: -0.3V to 26V; (2)Power Consumption: 200mW; (3)Power Consumption: 150mW; (4)Storage Temperature: -50℃ to 125℃; (5)Operating Temperature: 0℃ to 70℃.

Features

HT7133 features: (1)Low power consumption; (2)Low voltage drop; (3)Low temperature coefficient; (4)High input voltage (up to 24V); (5)TO-92 and SOT-89 packages.

Diagrams

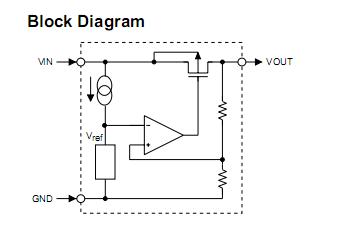

HT7133 block diagram
