Product Summary

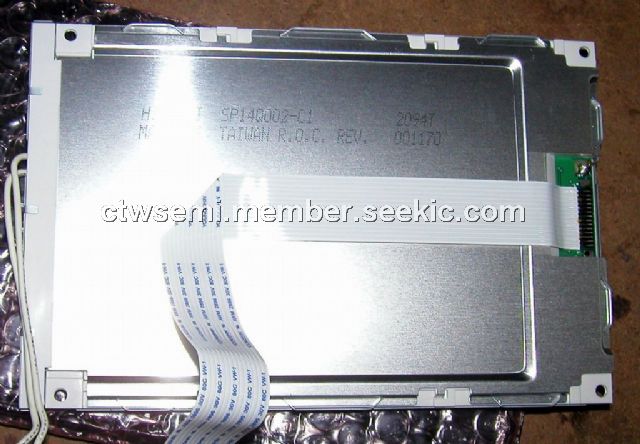

The SP14Q002-C1 is a LCD display module.

Parametrics

SP14Q002-C1 absolute maximum ratings: (1)operating ambient temperature: 0 to 50℃; (2)storage ambient temperature: -20 to 60℃.

Features

SP14Q002-C1 features: (1)outer dimensions: 167.0(W)mm×109.0(H)mm×10.0(D)mm max; (2)effective display area: 120(W)mm min×89(H)mm min; (3)dot size: 0.345(W)min×0.345(H)min; (4)dot pitch: 0.360(W)mm×0.360(H)mm; (5)duty ratio: 1/240; (6)LCD type: transmissive type F-STN with glare type upper polarizer; (7)viewing direction: 6 O clock.

Diagrams

SP14Q002-C1 block diagram
