Product Summary

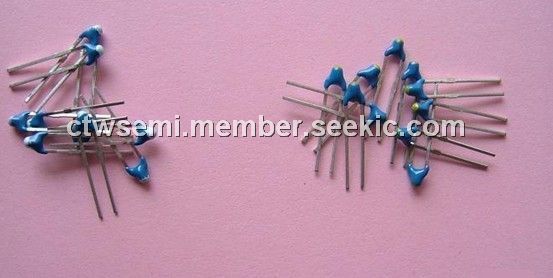

The 103AT-2 is a high-precision thermal sensing device featuring extremely small B-value tolerance and resistance. When used as a temperature gauge, the 103AT-2 requires no adjustment between the control circuit and the sensor.

Parametrics

103AT-2 general specifications: (1)R25:10.0kΩ±1%; (2)B value:3435K±1%; (3)dissipation factor:2mW/℃; (4)thermal time constant:15s; (5)rated power at 25℃:10mW; (6)operating temperature range:-50 to 110℃.

Features

103AT-2 features: (1)Larger output in comparison with other IR sensors; (2)Operating temperature of up 150℃; (3)Minimum negative influence caused by a dew and/or dust.

Diagrams

103AT-2 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
103AT-2
103AT-2

Semitec

Thermistors - NTC 10kohm 1%

Data Sheet

0-1: $1.35
1-10: $1.24
10-100: $1.00
100-200: $0.45
