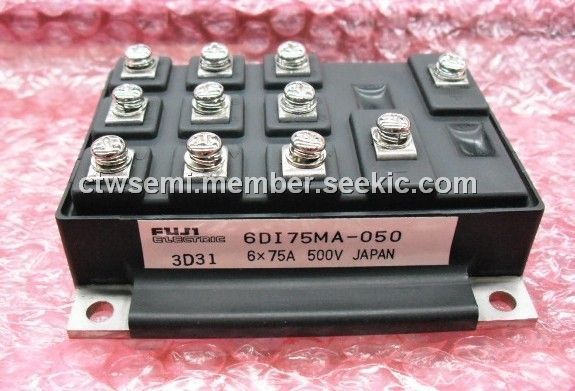

Product Summary

The 6DI75MA-050 is a power transistor module. It is suitable for general purpose inverter, uninterruptible power supply, servo&spindle drive for NC machine tools, robotics and switching power supplies for welding machines.

Parametrics

6DI75MA-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 10V; (5)IC: 75A; (6)ICP: 150A; (7)-IC: 75A; (8)IB: 4A; (9)IBP: 8A; (10)PC: 350W; (11)PC: 2100W; (12)Tj: 150℃; (13)Tstg: -40 to 125℃; (14)m: 450g; (15)Viso: 2500V.

Features

6DI75MA-050 features: (1)high DC current gain; (2)high speed switching.

Diagrams

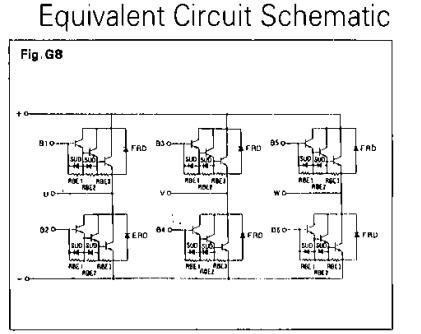

6DI75MA-050 equivalent circuit schematic
