Product Summary

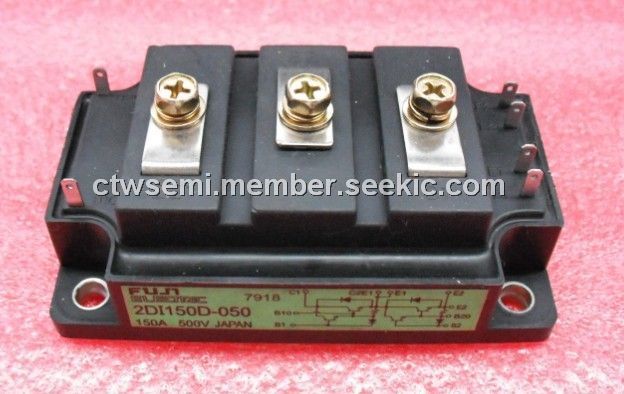

The 2DI150D-050 is a power transistor module. The applications of the device include high power switching, AC motor controls, DC motor controls and uninterruptible power supply.

Parametrics

2DI150D-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 7V; (5)DC, IC: 150A; (6)1ms, ICP: 300A; (7)DC, -IC: 150A; (8)DC, IB: 9A; (9)1ms, IBP: 18A; (10)one transistor, PC: 690W; (11)two transistor, PC: 1380W; (12)Tj: -40 to 125℃; (13)m: 340g; (14)Viso: 2500V; (15)mounting: 35kgcm; (16)terminals: 35kgcm.

Features

2DI150D-050 features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

Diagrams

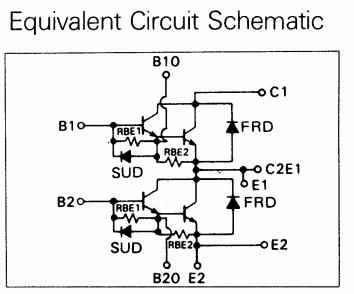

2DI150D-050 equivalent circuit schematic
