Product Summary
The CY8C24894-24LFXI is a Programmable System-on-Chip. It consists of many programmable system-on-chips with On-Chip Controller devices. The CY8C24894-24LFXI is designed to replace traditional MCUs, system ICs, and the numerous discrete components that surround them. The CY8C24894-24LFXI is unique members of the PSoC family because it includes a full featured, full speed (12 Mbps) USB port.
Parametrics
CY8C24894-24LFXI absolute maximum ratings: (1)Ambient Temperature with Power Applied:-40 to +85℃; (2)Supply Voltage on Vdd Relative to Vss:-0.5 to +6.0 V; (3)DC Input Voltage:Vss - 0.5 to Vdd + 0.5V; (4)DC Voltage Applied to Tri-state:Vss - 0.5 to Vdd + 0.5V; (5)Maximum Current into any Port Pin:-25 to +50 mA; (6)Maximum Current into any Port Pin Configured as Analog Driver:-50 to +50 mA; (7)Electro Static Discharge Voltage:2000V; (8)Latch-up Current:200 mA; (9)Storage temperature:-55 to +100℃.
Features
CY8C24894-24LFXI features: (1)M8C Processor Speeds to 24 MHz; (2)Two 8x8 Multiply, 32-Bit Accumulate; (3)Low Power at High Speed; (4)3V to 5.25V Operating Voltage; (5)Industrial Temperature Range: -40℃ to +85℃; (6)USB Temperature Range: -10℃ to +85℃; (7)Up to 14-Bit ADCs; (8)Up to 9-Bit DACs; (9)Programmable Gain Amplifiers; (10)Programmable Filters and Comparators; (11)8 to 32-Bit Timers, Counters, and PWMs; (12)CRC and PRS Modules; (13)Full-Duplex UART; (14)Multiple SPI Masters or Slaves; (15)Connectable to all GPI/O Pins; (16)Complex Peripherals by Combining Blocks; (17)Capacitive Sensing Application Capability.

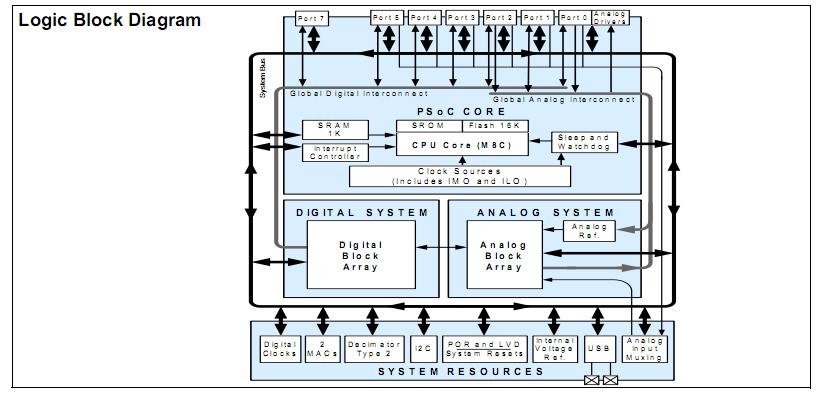

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY8C24894-24LFXI |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) IC MCU 16K FLASH 1K SRAM |
Data Sheet |
Negotiable |
|
||||
|
CY8C24894-24LFXIT |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) 16K Flash 1K RAM IND |
Data Sheet |
Negotiable |
|
||||
