E3Z-R86

Photoelectric Sensor, OMRON Corporation, E3Z-R86, 10 to 55 Hz, 0 to 100 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~8.00

PartNumber:: E3Z-R86

Brand:: OMRON Corporation - Omron | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-04

From Other Seller

Part Number:E3Z-R86
US $5.00 - 8.00
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The E3Z-R86 is a Photoelectric Sensor with Built-in Amplifier. It is applicable to a wide variety of lines and ensures a longer sensing distance than any other model.

Parametrics

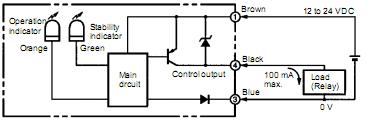

E3Z-R86 general specifications: (1)Connection method:M8 connector models ; (2)Indicator:Operation indicator(orange), Stability indicaton(green) ; (3)Weight (packed state):approx. 20 g ; (4)Tightening torque:0.5 N.m Max. (with M3 screw) ; (5)Material (case): PBT ; (6)Material (lens):Methacylate resin ; (7)Insulation resistance:20 M OHM Min. at 500 VDC between charged parts and the case ; (8)Dielectric strength:1000 VAC at 50/60 Hz for 1 minute between charged parts and the case ; (9)Vibration resistance:10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions ; (10)Shock resistance: 500m/s2 for 3 times each in X, Y, and Z directions ; (11)Light source:Red LED (660nm) ; (12)Power supply voltage:12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.) ; (13)Current consumption:30mA DC Max. ; (14)Control output (Output type):PNP open collector output ; (15)Control output (Load current):0 to 100 mA .

Features

E3Z-R86 features: (1)Photoelectric Sensor with built-in amplifier is applicable to a wide variety of lines and ensures a longer sensing distance than any other model; (2)User-friendly Sensor takes all installation and on-site conditions into consideration; (3)Eliminates the influence of installation and on-site conditions, thus increasing the reliability of the line; (4)OMRON has been making efforts towards environmental protection by adopting user and environment-friendly measures; (5)Greatly saves energy and resources. The economy-oriented age has evolved into the ecology-oriented age; (6)Meets a variety of international standards, thus allowing use in any country.
