Product Summary

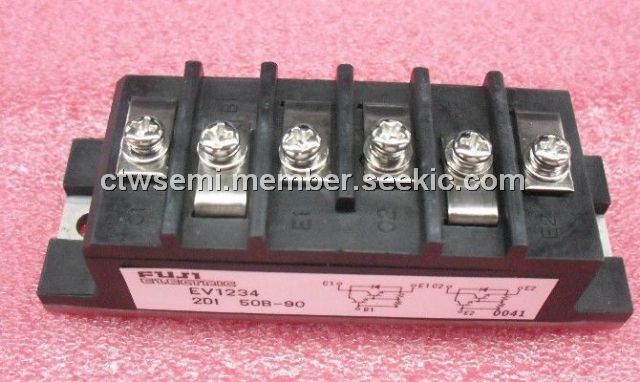

The EV1234 is a power transistor module. The device is suitable for AC motor controls power switching.

Parametrics

EV1234 absolute maximum ratings: (1)VCBO: 1000V; (2)VCEO: 1000V; (3)VCEO(SUS): 800V; (4)VEBO: 6V; (5)IC: 50A; (6)ICP: 100A; (7)-IC: 50A; (8)IB: 10A; (9)IBP: 20A; (10)PC: 500W; (11)PC: 1000W; (12)Tj: 150℃; (13)Tstg: -40 to 125℃; (14)m: 450g; (15)Viso: 2500V.

Features

EV1234 features: (1)high voltage; (2)including free wheeling diode; (3)insulated type.

Diagrams

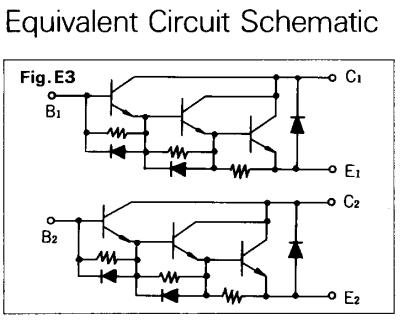

EV1234 equivalent circuit schematic
