Product Summary

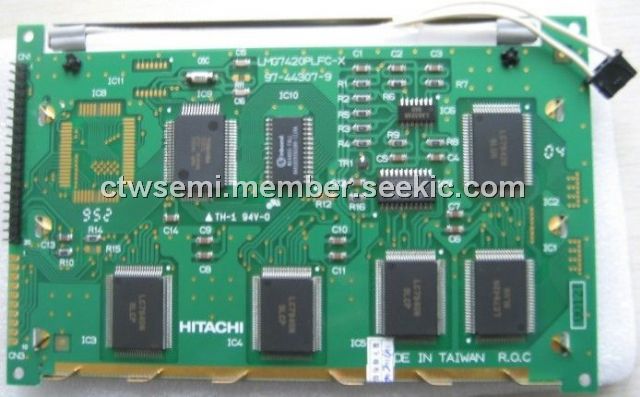

The LMG7420PLFC-X is a Hitachi Semiconductor.

Parametrics

LMG7420PLFC-X absolute maximum ratings: (1)supply voltage(logic): 6.5V; (2)supply voltage: 20.5V; (3)Input voltage: -0.3 to 0.3+VDD; (4)Operating temperature: 50℃; (5)storage temperature: -20 to 60℃.

Features

LMG7420PLFC-X features: (1)Black on white STN TYPE; (2)Transmissive mode; (3)High brightness CFL backlight; (4)High contrast LC material; (5)Built in LCD controller T6963C.

Diagrams

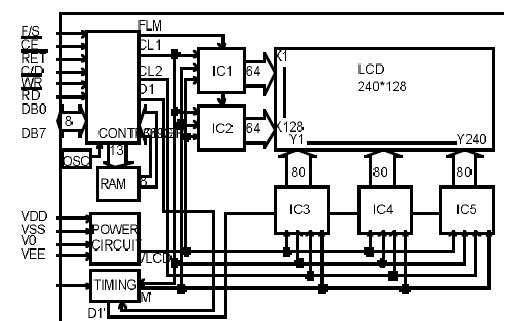

LMG7420PLFC-X block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LMG7420PLFC-X
LMG7420PLFC-X

Other


Data Sheet

Negotiable
