Product Summary
The HT7533 is a set of three-terminal high current low voltage regulator implemented in CMOS technology. The HT7533 can deliver 100mA output current and allow an input voltage as high as 24V. It is available with several fixed output voltages ranging from 3.0V to 8V. CMOS technology ensures low voltage drop and low quiescent current. The applications of the HT7533 are Battery-powered equipment, Communication equipment, Audio/Video equipment.
Parametrics
HT7533 absolute maximum ratings: (1)Supply Voltage:-0.3V to 26V ; (2)Storage Temperature:-50℃ to 125℃; (3)Power Consumption:250mW ; (4)Operating Temperature:0℃ to 70℃.
Features
HT7533 features: (1)Low power consumption; (2)Low voltage drop; (3)Low temperature coefficient; (4)High input voltage (up to 24V); (5)High output current : 100mA (Pd≤250mW); (6)TO-92 and SOT-89 package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

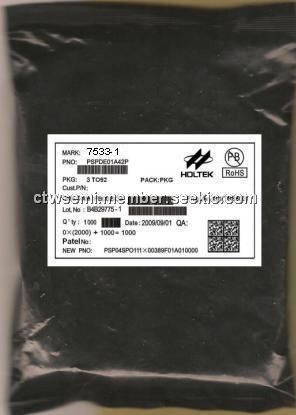

 HT7533-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
HT7525-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HT7527-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HT7530-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HT7533-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HT7536-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HT7540-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
