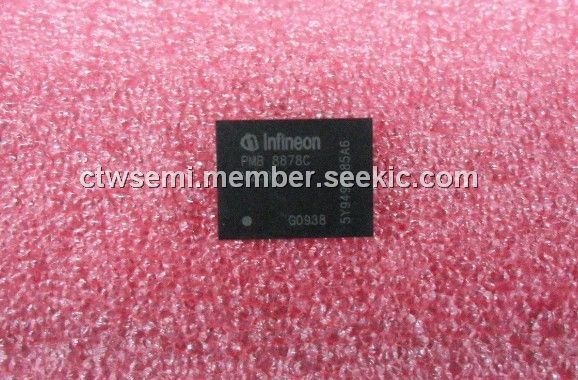

PMB 8878

Product Summary

Infineon Technologies extend its well known X-GOLD baseband PMB 8878 to support the 3.5G mobile phone generation. The integrated dual-mode HSDPA/WCDMA/E-GPRS modem technology, together with high speed multimedia hardware accelerators and the advanced connectivity options enable PMB 8878 to fulfi ll the requirements of tomorrow mobile phones. INFINEON is one of the early platform vendors to support HSDPA category 8 (7.2Mbit/s). The implementation of equalizer based advanced receiver technology improves the data throughput, especially at high data rates, by up to 40%. In addition, the software programmable slot processing in the HSDPA Rx path provides further fl exibility for performance enhancements. The HSDPA performance of PMB 8878 meets and exceeds all test cases as specifi ed in the 3GPP standard. INFINEON 3.5 G physical layer architecture is future-proof and designed for an easy upgrade to higher HSDPA data rates, HSUPA and also Rx-diversity.

Features

PMB 8878 features: (1)ARM 926 based single modem and application processor with cache support and fast tightly-coupled memories; (2)Hardware Crypto box - DRM 2.0, SIM Lock, IMEI protection; (3)Hardware security - E-fuse, Boot Code Protection, Secure Mode; (4)CPU, RGB display interface supporting high resolution color displays up to HVGA; (5)High-speed serial display interface for cost eff ective clamshell mechanics up to HVGA; (6)Support of cameras up to 5 MPixel MPEG4/H.263 hardware accelerator MP3, AAC, AAC+, enhanced AAC+; (7)2D Graphic hardware; (8)Support for video telephony, streaming, recording and playback; (9)2 x MMC/SD interfaces, SDIO capable USB 2.0 on-the-go, full speed; (10)Fast IRDA; (11)Multimedia extension interface (MMICIF) for support of high end graphic accelerators; (12)2 bi-directional digital audio interfaces (I2S) to connect audio companion ICs and Bluetooth modules; (13)Dedicated NAND fl ash controller supporting burst mode and error detection; (14)Support of DDR-SDRAM devices.

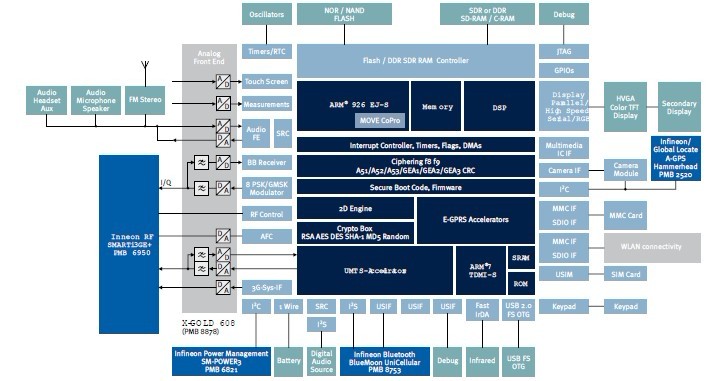

Diagrams
