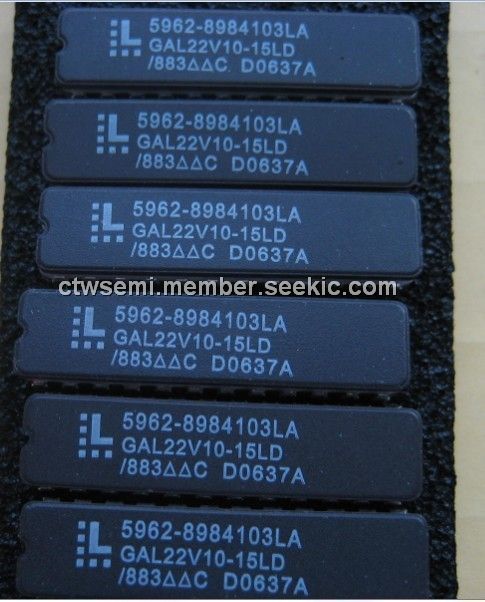

Product Summary
The GAL22V10-15LD/883C is a generic Array Logic device. It combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest performance available of any 22V10 device on the market. CMOS circuitry allows the GAL22V10-15LD/883C to consume much less power when compared to bipolar 22V10 devices. E2 technology offers high speed (<100ms) erase times, providing the ability to reprogram or reconfigure the device quickly and efficiently.
Parametrics
GAL22V10-15LD/883C absolute maximum ratings: (1)Supply voltage VCC: -0.5 to +7V; (2)Input voltage applied: -2.5 to VCC +1.0V; (3)Off-state output voltage applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Ambient Temperature with Power Applied: -65 to 150℃.
Features
GAL22V10-15LD/883C features: (1)High performance ecmos technology:4 ns Maximum Propagation Delay; Fmax = 250 MHz; 3.5 ns Maximum from Clock Input to Data Output; UltraMOS Advanced CMOS Technology; (2)Active pull-ups on all pins; (3)Compatible with standard 22v10 devices: Fully Function/Fuse Map/Parametric Compatible with Bipolar and UVCMOS 22V10 Devices; (4)50% to 75% reduction in power versus bipolar: 90mA Typical Icc on Low Power Device; 45mA Typical Icc on Quarter Power Device; (5)E cell technology: Reconfigurable Logic; Reprogrammable Cells; 100% Tested/100% Yields; High Speed Electrical Erasure (<100ms); 20 Year Data Retention; (6)Ten output logic macrocells: Maximum Flexibility for Complex Logic Designs; (7)Preload and power-on reset of registers: 100% Functional Testability; (8)Applications include: DMA Control; State Machine Control; High Speed Graphics Processing; Standard Logic Speed Upgrade; (9)Electronic signature for identification.
Diagrams
 |
