Product Summary
The M95020-WMN6P is a 4 Kbit (512 x 8) electrically erasable programmable memory (EEPROM), accessed by a high speed SPI-compatible bus. It is accessed by a simple serial interface that is SPI-compatible. The M95020-WMN6P is selected when Chip Select (S) is taken Low. Communications with the device can be interrupted using Hold (HOLD). WRITE instructions are disabled by Write Protect (W).
Parametrics
M95020-WMN6P absolute maximum ratings: (1)Storage Temperature:–65 to 150℃; (2)Output Voltage:–0.50 to VCC+0.6V; (3)Input Voltage:–0.50 to 6.5V; (4)Supply Voltage:–0.50 to 6.5V; (5)Electrostatic Discharge Voltage (Human Body model):–4000 to 4000V.
Features
M95020-WMN6P features: (1)Compatible with SPI Bus Serial Interface (Positive Clock SPI Modes); (2)High Speed:10MHz Clock Rate, 5ms Write Time; (3)Status Register; (4)BYTE and PAGE WRITE (up to 16 Bytes); (5)Self-Timed Programming Cycle; (6)Adjustable Size Read-Only EEPROM Area; (7)Enhanced ESD Protection; (8)More than 1 Million Erase/Write Cycles; (9)More than 40-Year Data Retention.

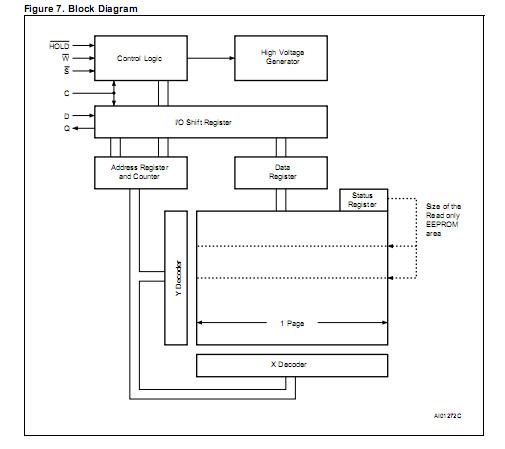

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

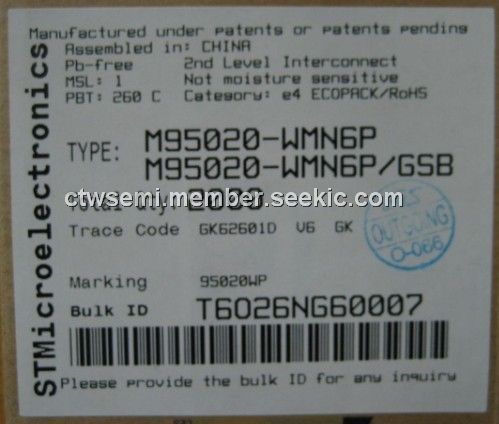

 M95020-WMN6P |
STMicroelectronics |
EEPROM 2.5 V to 5.5V 2K |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
M95010-BPMN6 |
STMicroelectronics |
EEPROM 5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M95010-MN6 |
STMicroelectronics |
EEPROM 5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M95010-RMN6TP |
STMicroelectronics |
EEPROM Serial SPI Bus EEPROM |
Data Sheet |
|
|
||||||||||||
|
M95010-WBN6 |
STMicroelectronics |
EEPROM 5.5V 1K (128x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M95010-WDW6TP |
STMicroelectronics |
EEPROM 2.5 V to 5.5V 1k |
Data Sheet |
|
|
||||||||||||
|
M95020-WMN6P |
STMicroelectronics |
EEPROM 2.5 V to 5.5V 2K |
Data Sheet |
|
|
||||||||||||
