Product Summary

The E39-R1S is a Photoelectric Sensor.

Parametrics

E39-R1S general specifications: (1)Insulation resistance:20 MΩ min. at 500 VDC; (2)Dielectric strength:1,000 VAC, 50/60 Hz for 1 min; (3)Vibration resistance: Destruction: 10 to 2,000 Hz, 1.5-mm double amplitude or 300 m/s2 for 0.5 hrs each in X, Y, and Z directions; (4)Shock resistance: Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions; (5)Degree of protection:IP67 (IEC60529); (6)Ambient operating temperature range:-25 to 55℃; (7)Ambient storage temperature range:-40 to 70℃; (8)Ambient operating humidity range:35% to 85% ; (9)Directional angle:30°min. (40°or higher for E3JM-R and E3JK-R) ; (10)Ambient storage humidity range 35% to 95%.

Features

E39-R1S features: (1)Brackets enhance mounting flexibility ; (2)Protective mounts fortify sensors against contact damage; (3)Height adjustable and rotating mounts available.

Diagrams

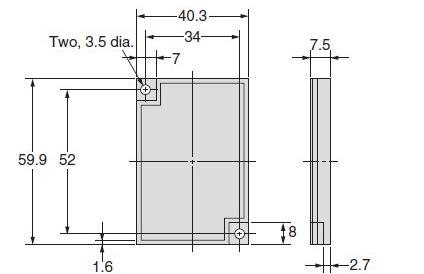

E39-R1S package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E39-R1S
E39-R1S

Omron Industrial

Photoelectric Sensors Reflector for E3FA-R9 and E3RA-R9

Data Sheet

0-1: $12.88
1-5: $11.84
5-10: $11.16
10-25: $10.32
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E39-C1
E39-C1

Omron Industrial

Photoelectric Sensors 2M Cable connector for E3MC

Data Sheet

0-1: $93.68
1-2: $86.39
2-5: $80.67
5-10: $77.54
E39-C1 5M
E39-C1 5M

Omron Industrial

Photoelectric Sensors E3MC CABLE CONN ECTOR 5M

Data Sheet

Negotiable
E39-E10
E39-E10

Omron Industrial

Photoelectric Sensors SENSITIVITY ADJ FOR E3T

Data Sheet

0-1: $27.46
1-10: $26.67
10-25: $25.88
25-50: $25.10
E39-E11
E39-E11

Omron Industrial

Photoelectric Sensors MUTUAL INTRFC FLTRS FOR E3Z-TA

Data Sheet

0-1: $15.56
1-5: $14.48
5-10: $13.54
10-20: $13.04
E39-E6
E39-E6

Omron Industrial

Photoelectric Sensors INTERFERENCE FILTERS

Data Sheet

0-1: $28.44
1-25: $25.85
25-50: $23.70
50-100: $21.88
E39-E8
E39-E8

Omron Industrial

Photoelectric Sensors E3S-B MUT.INT.FILTER

Data Sheet

0-1: $23.41
1-5: $22.27
5-10: $20.80
10-20: $20.15
