Product Summary
The LM64183P is a Large Size Graphic Type LCD Module.
Parametrics
LM64183P absolute maximum ratings: (1)Display size: 24 [9.4] cm; (2)Brightness: 70 cd/m2; (3)Dot format (H x V) 640 x 480 dot; (4)Duty ratio: 1/240; (5)Dot pitch (H x V) 0.30 x 0.30 mm; (6)Backlight type 1CCFT(E); (7)Active area (H x V) 192.0 x 144.0 mm; (8)Power consumption panel: 380 mW; (9)Panel type FSTN - Backlight 1 800 mW; (10)Panel mode: Transmissive; (11)Outline dimensions (W x H x D): 253.0(260.0) x 174.0 x 7.0 mm; (12)Operating temperature: 0 to +45 ℃; (13)Response time: 550 ms; (14)Storage temperature: -25 to +60 ℃.
Features
LM64183P features: (1)24 cm [9.4] VGA format; (2)B/W display; (3)Cost effective panel; (4)Thi(7.0 mm) & lightweight (340 g).

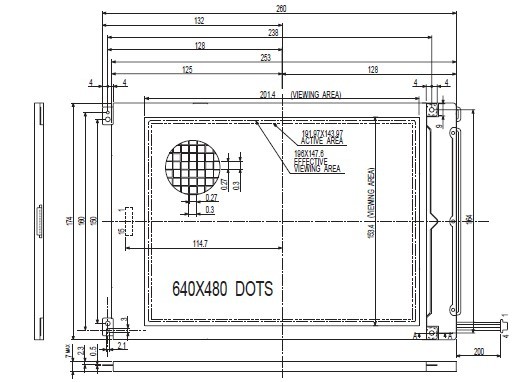

Diagrams
