Product Summary

The OPA842ID is a wideband, low distortion, unity-gain stable, voltage-feedback operational amplifier. The OPA842ID provides a level of speed and dynamic range previously unattainable in a monolithic op amp. The applications of the OPA842ID are ADC/DAC buffer driver, low distortion “if” amplifier, active filter configuration, low-noise differential receiver, high-resolution imaging, test instrumentation, professional audio, OPA642 upgrade.

Parametrics

OPA842ID absolute maximum ratings: (1)Power Supply:±6.5VDC; (2)Differential Input Voltage:±1.2V; (3)Input Voltage Range:±VS; (4)Storage Voltage Range: D, DBV:–40℃ to +125℃; (5)Lead Temperature (soldering, 10s):+300℃; (6)Junction Temperature (TJ):+175℃; (7)ESD Rating: Human Body Model:2000V, Charge Device Model:1500V, Machine Model:200V.

Features

OPA842ID features: (1)unity-gain bandwidth: 400MHz; (2)gain-bandwidth product: 200MHz; (3)low input voltage noise: 2.6nV/√Hz; (4)very low distortion: –93dBc (5MHz); (5)high open-loop gain: 110dB; (6)fast 12-bit settling: 22ns (0.01%); (7)low dc voltage offset: 300μV Typical; (8)professional level diff gain/phase error:0.003%/0.008°.

Diagrams

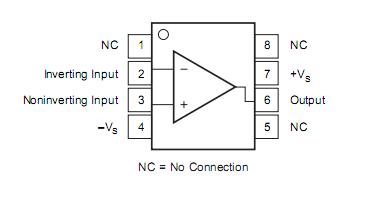

OPA842ID pin configuration
