Product Summary

The 2DI200A-020 is a power transistor module. The applications of the device inlcude DC motor controls and uninterruptible power supply.

Parametrics

2DI200A-020 absolute maximum ratings: (1)VCBO: 300V; (2)VCEO: 300V; (3)VEBO: 6V; (4)IC: 200A; (5)ICP: 400A; (6)-IC: 200A; (7)IB: 8A; (8)IBP: 8A; (9)PC: 500W; (10)PC: 1000W; (11)Tj: 150℃; (12)Tstg: -40 to 125℃; (13)m: 450g; (14)Viso: 2500V.

Features

2DI200A-020 features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

Diagrams

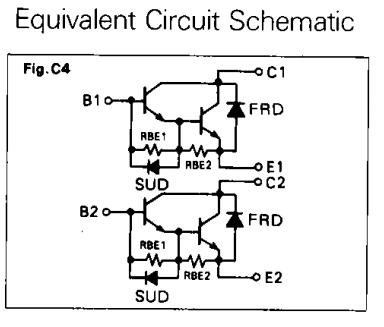

2DI200A-020 equivalent circuit schematic
