Product Summary
The VN88AFD is an N-Channel 80-V and 90-V (D-S) MOSFET. Applications include: (1)Direct Logic-Level Interface: TTL/CMOS; (2)Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.; (3)Battery Operated Systems; (4)Solid-State Relays.
Parametrics
VN88AFD absolute maximum ratings: (1)Drain-Source Voltage VDS: 80V; (2)Gate-Source Voltage VGS: ±30V; (3)Continuous Drain Current (TJ = 150℃)TC = 25℃ ID: 1.29A; TC = 100℃ ID: 0.81A; (4)Pulsed Drain Current IDM: ±3A; (5)Power Dissipation TC = 25℃ PD: 15W; TC = 100℃ PD: 6W; (6)Thermal Resistance, Junction-to-Case RthJC: 8.3℃/W; (7)Operating Junction and Storage Temperature Range TJ, Tstg: –55 to 150 ℃.
Features
VN88AFD features: (1)Low On-Resistance: 3.6 Ω; (2)Low Threshold: 1.6 V; (3)Low Input Capacitance: 35 pF; (4)Fast Switching Speed: 6 ns; (5)Low Input and Output Leakage.

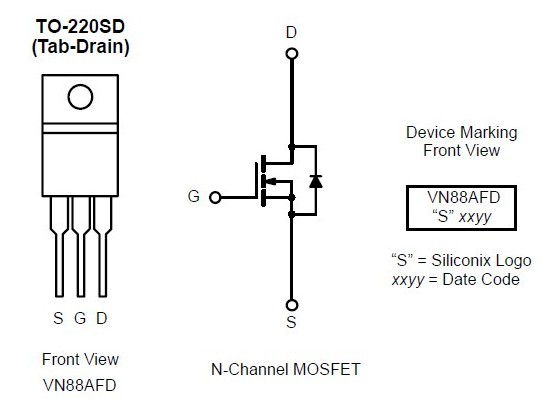

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

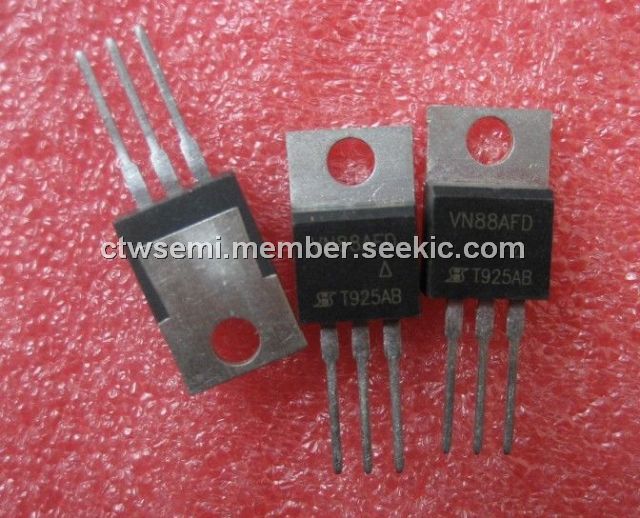

VN88AFD |
Vishay/Siliconix |
MOSFET 80V 1.29A 15W |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
VN88AFD |
Vishay/Siliconix |
MOSFET 80V 1.29A 15W |
Data Sheet |
Negotiable |
|
