Product Summary

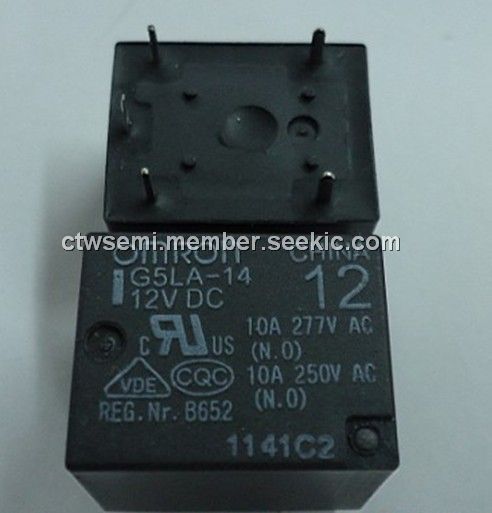

The G5LA-14-12VDC is a Cubic, Single-pole 10A Power Relay.

Parametrics

G5LA-14-12VDC absolute maximum ratings: (1)Contact resistance: 100 mΩ max; (2)Operate time: 10 ms max; (3)Release time: 5 ms max; (4)Max. operating frequency: Mechanical: 18,000 operations/hr; Electrical: 1,800 operations/hr (under rated load); (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (6)Dielectric strength: 2,000 VAC, 50/60 Hz for 1 minute between coil and contacts; 750 VAC, 50/60 Hz for 1 minute between contacts of same polarity; (7)Vibration resistance: Destruction: 10 to 55 Hz, 1.5-mm double amplitude; Malfunction: 10 to 55 Hz, 1.5-mm double amplitude.

Features

G5LA-14-12VDC features: (1)Economical cube relay with universal terminal footprint; (2)Conforms to VDE0435, CQC; (3)UL recognized/ CSA certified; (4)High switching power: 10A @ 250VAC; (5)Withstands impulse of up to 4,500V; (6)Coil power consumption: 360mW; (7)UL Class F coil insulation type also available; (8)Tracking resistance: CTI>250; (9)RoHS Compliant.
