Product Summary
The XC2VP50-5FF1148I is a platform FPGA. It is based on IP cores and customized modules. The XC2VP50-5FF1148I incorporates multi-gigabit transceivers and PowerPC CPU blocks in Virtex-II Pro Series FPGA architecture. The XC2VP50-5FF1148I empowers complete solutions for telecommunication, wireless, networking, video, and DSP applications. The leading-edge 0.13 μm CMOS nine-layer copper process and Virtex-II Pro architecture are optimized for high performance designs in a wide range of densities.
Parametrics
XC2VP50-5FF1148I absolute maxing ratings: (1)VCCINT Internal supply voltage relative to GND: –0.5 to 1.6 V; (2)VCCAUX Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF Input reference voltage: –0.3 to 3.75 V; (6)VIN; (7)3.3V I/O input voltage relative to GND (user and dedicated I/Os): –0.3 to 4.05 V; (8)2.5V or below I/O input voltage relative to GND (user and dedicated I/Os): –0.5 to VCCO + 0.5 V.
Features
XC2VP50-5FF1148I features: (1)Flexible logic resources; (2)SRAM-based in-system configuration; (3)Active Interconnect technology; (4)SelectRAM + memory hierarchy; (5)Dedicated 18-bit x 18-bit multiplier blocks; (6)High-performance clock management circuitry; (7)SelectI/O -Ultra technology; (8)XCITE Digitally Controlled Impedance (DCI) I/O.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

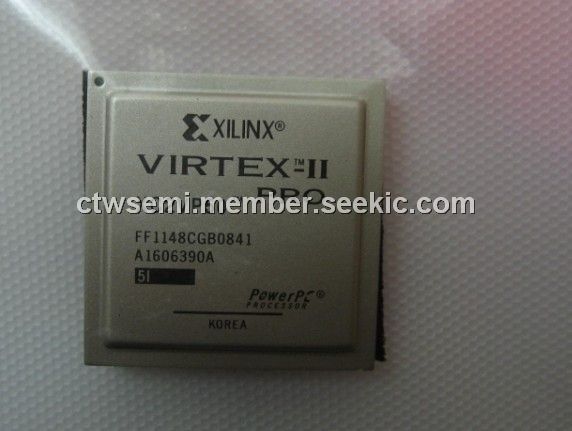

XC2VP50-5FF1148I |
IC FPGA VIRTEX-II PRO 1148FFBGA |
Data Sheet |
|
|
||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
XC2V1000 |
Other |
Data Sheet |
Negotiable |
|
||||||||
XC2V1000-4BG575I |
IC FPGA VIRTEX-II 575PBGA |
Data Sheet |
|
|
||||||||
XC2V1000-4BGG575C |
IC VIRTEX-II FPGA 1M 575-MBGA |
Data Sheet |
|
|
||||||||
XC2V1000-4BGG575I |
IC FPGA VIRTEX-II 2M 575-MBGA |
Data Sheet |
|
|
||||||||
XC2V1000-4FF896I |
IC FPGA VIRTEX-II 896FCBGA |
Data Sheet |
|
|
||||||||
XC2V1000-4FFG896C |
IC VIRTEX-II FPGA 1M 896-FBGA |
Data Sheet |
|
|
