Product Summary

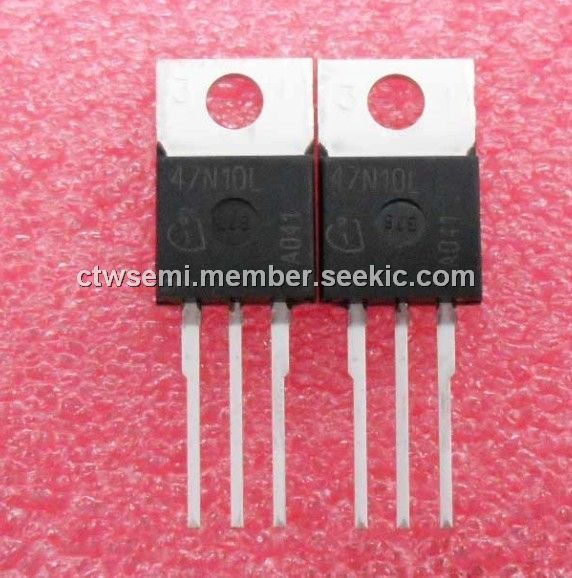

The 47N10L is a power transistor.
Parametrics
47N10L absolute maximum ratings: (1)Continuous drain current, ID: 47A at Tc=25℃; 33A at Tc=100℃; (2)Pulsed drain current, TC=25℃, ID puls: 188A; (3)Avalanche energy, single pulse, ID=47 A , VDD=25V, RGS=25, EAS: 400 mJ; (4)Avalanche energy, periodic limited by Tjmax, EAR: 17.5mJ; (5)Reverse diode dv/dt, IS=47A, VDS=0V, di/dt=200A/μs, dv/dt: 6 kV/μs; (6)Gate source voltage, VGS: ±20 V; (7)Power dissipation, TC=25℃, Ptot: 175 W; (8)Operating and storage temperature Tj , Tstg: -55 to +175℃。
Features
47N10L features: (1)N-Channel; (2)Enhancement mode; (3)Logic Level; (4)175℃ operating temperature; (5)Avalanche rated; (6)dv/dt rated.
Diagrams
