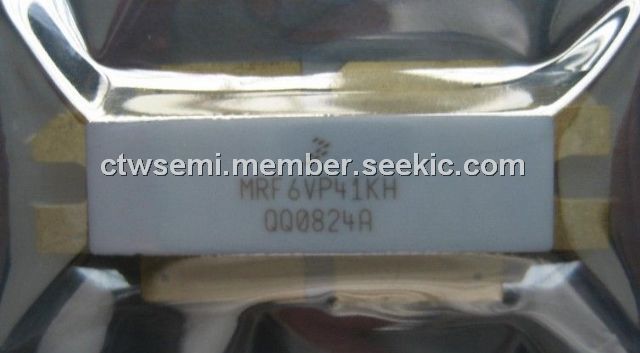

Product Summary

The MRF6VP41KH is a RF Power Field Effect Transistor. It is designed primarily for pulsed wideband applications with frequencies up to 500 MHz. Devices are unmatched and are suitable for use in industrial, medical and scientific applications.

Parametrics

MRF6VP41KH absolute maximum ratings: (1)Drain--Source Voltage, VDSS: -0.5, +110 Vdc; (2)Gate--Source Voltage, VGS: -6 , + 1 0 Vdc; (3)Storage Temperature Range, Tstg: - 65 to +150℃; (4)Case Operating Temperature, TC: 150℃; (5)Operating Junction Temperature, TJ: 225℃; (6)CW Operation, CW: 1170W at TC =25℃; 4.6W/℃ at Derate above 25℃.

Features

MRF6VP41KH features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)CW Operation Capability with Adequate Cooling; (3)Qualified Up to a Maximum of 50 VDD Operation; (4)Integrated ESD Protection; (5)Designed for Push--Pull Operation; (6)Greater Negative Gate--Source Voltage Range for Improved Class C; (7)Operation; (8)RoHS Compliant; (9)In Tape and Reel. R6 Suffix = 150 Units per 56 mm, 13 inch Reel.

Diagrams

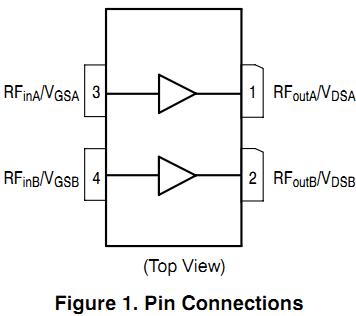

MRF6VP41KH pin connection
