Product Summary

The SBR8U60P5-13 is a super barrier rectifier.

Parametrics

SBR8U60P5-13 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 60V; (2)Working Peak Reverse Voltage, VRWM: 60V; (3)DC Blocking Voltage, VRM: 60 V; (4)Average Rectified Output Current @TC = 140℃, IO: 8 A; (5)Non-Repetitive Peak Forward Surge Current: 8.3ms Single Half Sine-Wave Superimposed on Rated Load, IFSM: 280 A; (6)Repetitive Peak Avalanche Power (1μs, 25℃), P: 5,000 W.

Features

SBR8U60P5-13 features: (1)Ultra Low Forward Voltage Drop; (2)Patented Super Barrier Rectifier Technology; (3)Soft, Fast Switching Capability; (4)150oC Operating Junction Temperature; (5)Lead Free Finish, RoHS Compliant; (6)Green Molding Compound (No Br, Sb).

Diagrams

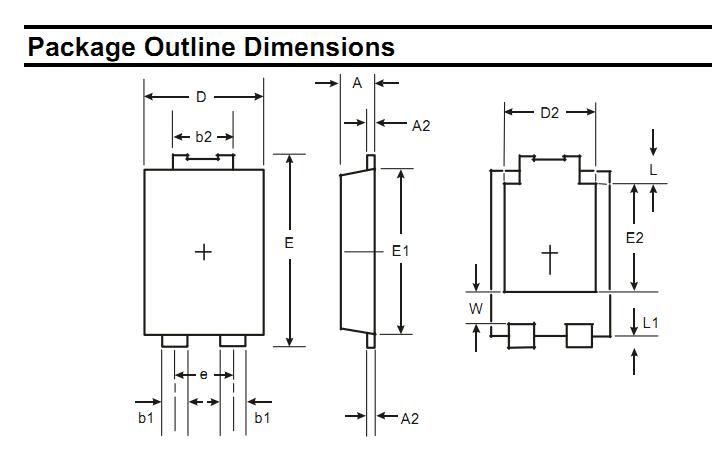

SBR8U60P5-13 package outline dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SBR8U60P5-13
SBR8U60P5-13
Diodes Inc.
Schottky (Diodes & Rectifiers) 8A 60V ULTRA-LOW VF
Data Sheet
0-1: $0.66
1-10: $0.59
10-100: $0.47
100-250: $0.41
