Product Summary

The SMAZ5V6-13-F is a 1.0W surface mount zener diode.

Parametrics

SMAZ5V6-13-F absolute maximum ratings: (1)Forward Voltage @IF = 200mA, VF: 1.2 V; (2)Zener Current, IZM: PD/VZ mA.

Features

SMAZ5V6-13-F features: (1)1.0W Power Dissipation; (2)Ideally Suited for Automated Assembly; (3)5.1V - 39V Nominal Zener Voltage Range; (4)Standard VZ Tolerance is ± 5%; (5)Lead Free Finish/RoHS Compliant; (6)Green Molding Compound (No Halogen and Antimony).

Diagrams

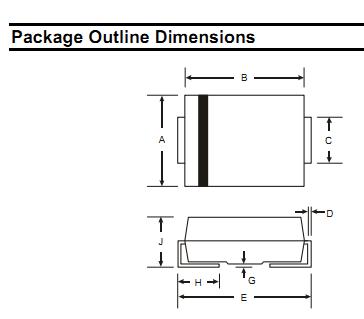

SMAZ5V6-13-F package outline dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SMAZ5V6-13-F
SMAZ5V6-13-F
Diodes Inc.
Zener Diodes 5.6V 1W
Data Sheet
0-1: $0.12
1-10: $0.11
10-100: $0.10
100-250: $0.10
