Product Summary
The US1J-13-F is a 1.0A surface mount ultra-fast rectifier.
Parametrics
US1J-13-F absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 50V; (2)Working Peak Reverse Voltage, VRWM: 50V; (3)DC Blocking Voltage, VR: 50V; (4)RMS Reverse Voltage, VR(RMS): 35V; (5)Average Rectified Output Current @ TT = 75℃, IO: 1.0A; (6)Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load, IFSM: 30A.
Features
US1J-13-F features: (1)Glass Passivated Die Construction; (2)Ultra-Fast Recovery Time for High Efficiency; (3)Surge Overload Rating to 30A Peak; (4)High Current Capability; (5)Ideally Suited for Automated Assembly; (6)Lead Free Finish/RoHS Compliant; (7)Green Molding Compound (No Halogen and Antimony).

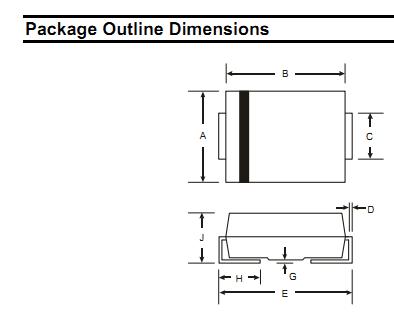

Diagrams
