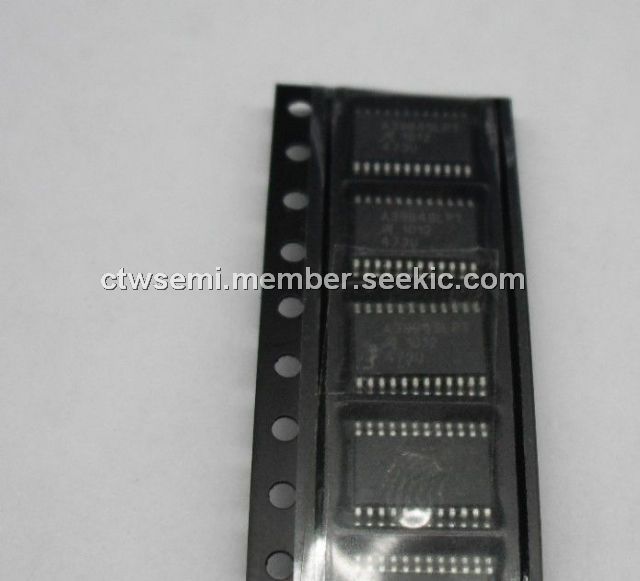

Product Summary
The A3984SLPT is a complete microstepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and sixteenth-step modes, with an output drive capacity of up to 35 V and ±2 A. The A3984SLPT includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes. The translator is the key to the easy implementation of the A3984. Simply inputting one pulse on the STEP input drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. The A3984SLPT interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
Parametrics
A3984SLPT absolute maximum ratings: (1)Load Supply Voltage,VBB: 35 V; (2)Output Current, IOUT: ±2 A; (3)Logic Input Voltage, VIN: –0.3 V to 7 V; (4)Sense Voltage, VSENSE: 0.5 V; (5)Reference Voltage, VREF: 4 V; (6)Operating Temperature Range Ambient, TA: –20 to 85℃; (7)Junction Temperature, TJ(MAX): 150℃; (8)Storage Temperature, TS: –55 to 150℃.
Features
A3984SLPT features: (1)Low RDS(ON) outputs; (2)Automatic current decay mode detection/selection; (3)Mixed and Slow current decay modes; (4)Synchronous rectification for low power dissipation; (5)Internal UVLO and thermal shutdown circuitry; (6)Crossover-current protection.

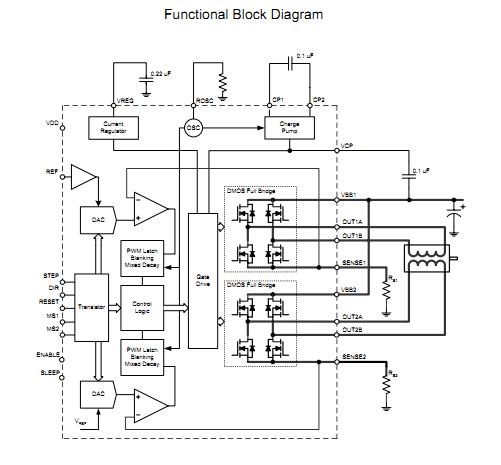

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A3984SLPTR |
|
IC DRIVER MICROSTEPPING 24-TSSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
A3984SLPTR-T |
|
IC DRIVER MICROSTEPPING 24-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
