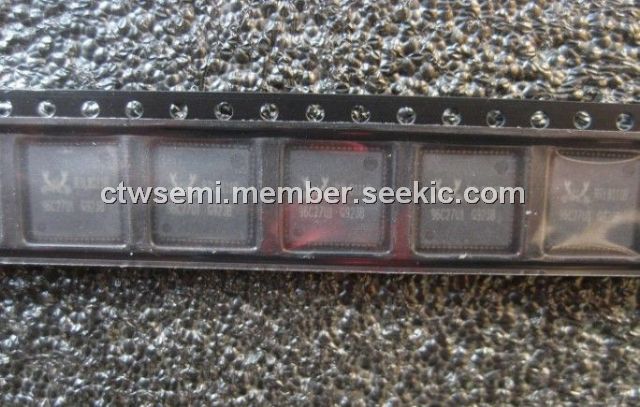

RTL8111B

Gigabit Ethernet controller, QFN64, -0.5 to 2 V, Serial EEPROM, PCI Message Signaled Interrupt

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.80

PartNumber:: RTL8111B

Brand:: Realtek Semiconductor - Realtek | Pack: QFN | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-14

From Other Seller

Part Number:RTL8111B
US $1.00 - 1.80
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RTL8111B is a Gigabit Ethernet controller. It combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111B offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

Parametrics

RTL8111B absolute maximum ratings: (1)VDD33, AVDD33, Supply Voltage 3.3V: -0.5 to 4.6 V; (2)EVDD18,AVDD18, Supply Voltage 1.8V: -0.5 to 2.1 V; (3)VDD15, Supply Voltage 1.5V: -0.5 to 2 V; (4)DCinput, Input Voltage: -0.5 to Corresponding Supply Voltage: + 0.5 V; (5)DCoutput, Output Voltage: -0.5 to Corresponding Supply Voltage: + 0.5 V; (6) Storage Temperature: -55 to +125℃.

Features

RTL8111B features: (1)Integrated 10/100/1000 transceiver; (2)Auto-Negotiation with Next Page capability; (3)Supports PCI Express 1.0a; (4)Supports pair swap/polarity/skew correction; (5)Crossover Detection & Auto-Correction; (6)Wake-on-LAN and remote wake-up support; (7)Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Largesend Offload support; (8)Supports Full Duplex flow control (IEEE 802.3x); (9)Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab; (10)Supports IEEE 802.1P Layer 2 Priority Encoding; (11)Supports IEEE 802.1Q VLAN tagging; (12)Serial EEPROM; (13)Transmit/Receive on-chip buffer (48KB) support; (14)Supports power down/link down power saving; (15)Supports PCI Message Signaled Interrupt (MSI); (16)64-pin QFN package (Green package).
