Product Summary

The UDN2987LW6T is an 8-channel source driver with over-current protection. Providing over-current protection for each of its eight sourcing outputs, the UDN2987LW6T is used as an interface between standard low-level logic and relays, motors, sole-noids, LEDs, and incandescent lamps. The UDN2987LW6T includes thermal shutdown and output transient protection/clamp diodes for use with sustaining voltages to 35 V.

Parametrics

UDN2987LW6T absolute maximum ratings: (1)Driver Supply Voltage, VS: 35 V; (2)Output Sustaining Voltage, VCE(sus): 35 V; (3)Continuous Output Current, IOUT: -500 mA; (4)FAULT Output Voltage, VCE: 35 V; (5)FAULT Output Current, lC: 30 mA; (6)Input Voltage, VIN: 15 V; (7)Operating Temperature Range, TA: -20 to +85℃; (8)Storage Temperature Range, TS: -55 to +150℃.

Features

UDN2987LW6T features: (1)350 mA Output Source Current; (2)Over-Current Protected; (3)Internal Ground Clamp Diodes; (4)Output Breakdown Voltage 35 V, Minimum; (5)TTL, DTL, PMOS, or CMOS Compatible Inputs; (6)Internal Thermal Shutdown Automotive Capable.

Diagrams

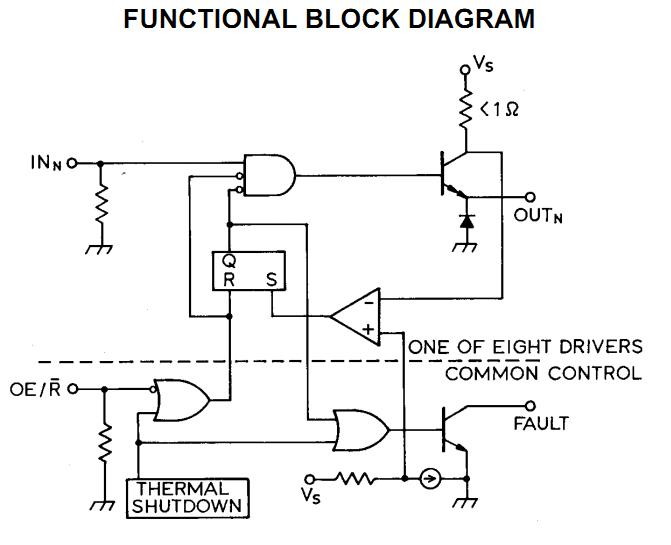

UDN2987LW6T functional block diagram
